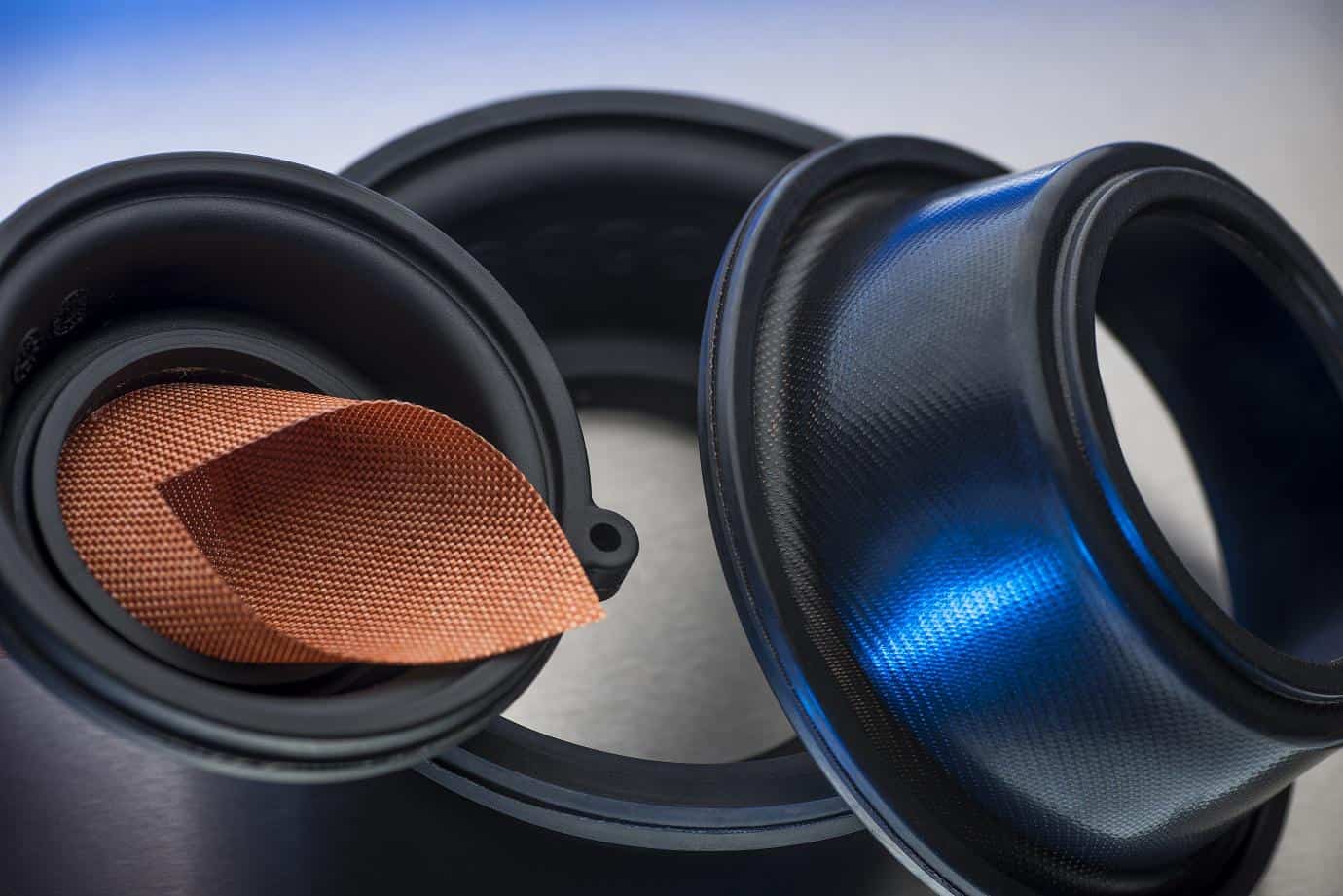

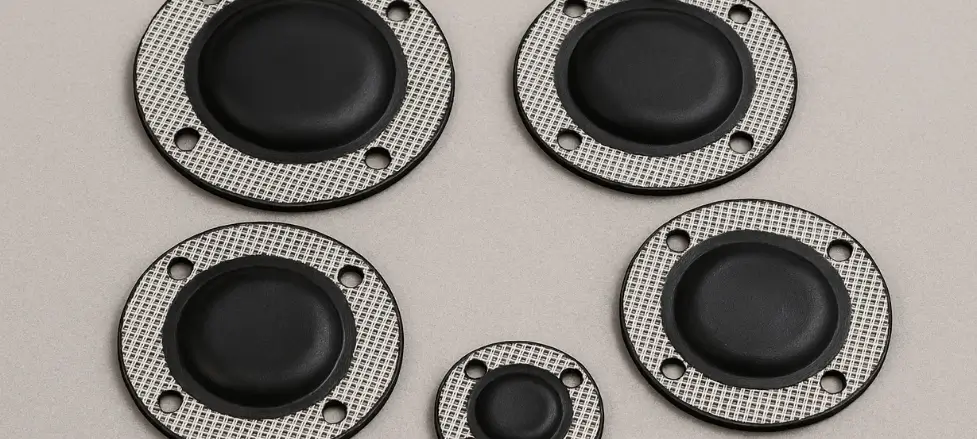

Diaphragms are flexible barriers that are commonly used to provide a seal and to isolate an enclose between a moving and stationary part. One example of an application where a diaphragm is used is with a piston working within a cylinder.
Static Diaphragms separate two fluids with little motion or pressure. Dynamic Diaphragms form a seal between stationary and moving parts, and transmit pressure.

Reinforcing the diaphragm with a fabric adds strength and sensitivity with minimum thickness.

Selecting the Fabric:

When selecting the fabric to be used to reinforce the diaphragm, the following factors are important:

  • Diaphragm pulse rate effect
  • Risk of tearing of the fabric due to flange sealing conditions
  • Required balance between sensitivity and strength of the fabric
  • Environmental effects on the fabric, i.e. flammability and temperature

Common Uses:

Fabric reinforced diaphragms are used in many different applications, including:

  • Valves
  • Regulators
  • Pumps
  • Air compressors
  • Pressure sensors


Techno Ad – Explore The Possibilities

Techno Ad uses special tooling to develop fabric reinforced diaphragms according to customer specifications from a wide range of materials and different types of fabrics, including drinking water certified compounds. We support the development process from concept to prototype and mass production.

Techno Ad’s fabric reinforced diaphragms meet the highest of military specifications, FDA, NSF61, and other standards.

Small minimum order quantities (MOQ) can be processed for in-stock customer designed fabric reinforced diaphragms. Techno Ad uses an advanced stock management system for all customer designed products.

Frequently Asked Questions – Fabric Reinforced Diaphragms

What are fabric reinforced diaphragms?

Fabric reinforced diaphragms are flexible sealing elements that incorporate woven or non-woven fabric layers into the elastomer matrix. This reinforcement significantly improves mechanical strength, pressure resistance, and dimensional stability, making them ideal for demanding dynamic applications.

Why use fabric reinforcement in a diaphragm?

Reinforcing fabric enhances fatigue life, burst resistance, and shape retention, especially under high pressure, vacuum, or repetitive actuation. It allows the diaphragm to maintain consistent performance in applications where non-reinforced elastomers would degrade or deform prematurely.

What industries rely on fabric reinforced diaphragms?

We supply fabric reinforced diaphragms to critical applications in waterworks, irrigation, medical and life sciences, aerospace and military, chemical processing, oil and gas, semiconductors, and food processing. These industries demand high durability and long service life under extreme or regulated conditions.

What types of fabrics are used for reinforcement?

We utilize a range of technical fabrics including polyester, aramid (Kevlar®), and nylon — selected based on the mechanical loads, thermal range, and chemical compatibility required. The fabric can be oriented for directional strength depending on your system’s motion profile.

What elastomers are compatible with fabric reinforcement?

Most elastomer bases can be reinforced, including EPDM, NBR, FKM, Silicone, HNBR, and others. The bonding process is engineered to ensure optimal adhesion between the fabric and rubber, maintaining mechanical integrity even under repeated flexing or aggressive media exposure.

What are the performance advantages of fabric reinforced diaphragms?

Compared to standard diaphragms, reinforced versions deliver: Higher burst pressure capacity, Enhanced dimensional control, Extended cycle life, Reduced creep and cold flow, Improved form retention under load and vacuum.

Can you produce multi-layer diaphragms or complex constructions?

Yes. We specialize in advanced constructions including multi-ply builds, metal or PTFE inserts, dual-material zones (e.g., media-contact vs. structural layers), and molded-in features for valve integration. Our diaphragms are engineered, not just molded.

What applications are best suited for fabric reinforced diaphragms?

They excel in pumps, regulators, actuators, control valves, dosing systems, and isolation barriers — especially where high-frequency actuation, vacuum pressure, or critical sealing are involved. If your component must endure millions of cycles or extreme duty conditions, this is the right solution.

Are your diaphragms compliant with industry standards?

Yes. We manufacture to meet specifications such as FDA, USP Class VI, NSF, WRAS, MIL-SPEC, and other global regulatory and quality standards. If compliance or certification is a concern, we can provide full documentation and traceability.

Can you help design a diaphragm for my specific system?

Absolutely. Our engineering team collaborates with your designers to optimize geometry, reinforcement type, material pairing, and molding strategy. We solve for performance, manufacturability, and cost without compromising on reliability.

Do you offer prototyping and validation testing?

Yes. We support prototype development, short runs, and full production. Testing services include fatigue/cycle life, burst pressure, thermal aging, media compatibility, and more. We can simulate real-world conditions to ensure your design is production-ready.

What file types do you accept for custom designs?

We work with all standard 2D and 3D CAD formats — STEP, IGES, DXF, SolidWorks. If you’re starting from a sketch or legacy part, we can assist with digitization and redesign.

How do I initiate a custom fabric reinforced diaphragm project?

Start by sharing your application details, performance targets, and any existing designs or specifications. We’ll propose a tailored solution including material choices, reinforcement strategy, and production plan. You get a diaphragm engineered for success, not just delivered to spec.
